Modifying Amiga Optical Mouse to fit A600

Recently I bought an Amiga Optical Scroll Mouse from AmigaKit, and I also ordered the recommended adapter for my A600. However, I was not very pleased with this solution because it looked kind of ugly!
IMG_20191103_154305

Amiga Optical Scroll Mouse with ugly adapter.

I decided to modify the connector housing by cutting away the plastic tabs that hold the connector in place.

To make this modification, take a sharp knife like a X-acto knife. Cut close to the tab until it is easily bent with a pair of pliers, about 45 degrees. Then continued to cut until the tab comes loose.
IMG_20191103_160548

Trimming of the remaining plastic using the connector as support.

IMG_20191103_151304

Rough up the surface inside the housing a bit before applying hot glue to fixate the PCB mounted on the connector.

IMG_20191103_151530

Adding a moderate amount of hot glue.

IMG_20191103_151710

Fixate the PCB with the integrated circuit facing the glue, and let it cool.

IMG_20191103_150055

Trim down the top right corner (facing the connector).

IMG_20191103_165533

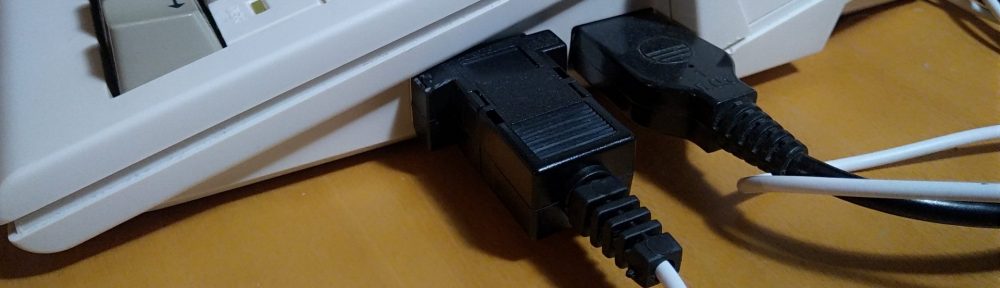

It now makes a snug fit in the mouse port.

IMG_20191103_165533

I must say that I am very satisfied with the result! 🙂
